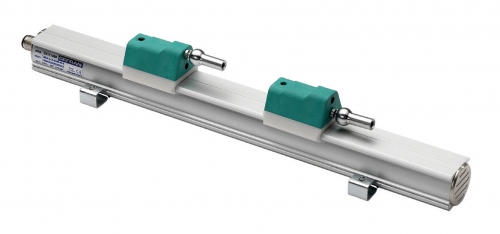

MK4C Contactless magnetostrictive linear position transducer (CANopen OUTPUT)
Description
Contactless linear position transducer featuring magnetostrictive technology.
The absence of electrical contact on the cursor eliminates wear, ensuring nearly unlimited transducer life.
The MK4C CANopen model integrates a microprocessor for measurement processing and transducer diagnostics.
Its CAN fieldbus interface guarantees fast and reliable data transmission.
Using the CANopen DS-301 protocol and Device Profile DS-406, the transducer can be easily and quickly integrated into control and automation systems.
The absence of electrical contact on the cursor eliminates wear, ensuring nearly unlimited transducer life.
The MK4C CANopen model integrates a microprocessor for measurement processing and transducer diagnostics.
Its CAN fieldbus interface guarantees fast and reliable data transmission.
Using the CANopen DS-301 protocol and Device Profile DS-406, the transducer can be easily and quickly integrated into control and automation systems.
- Absolute position and speed measurement
- Supports one or two cursors simultaneously
- Embedded local intelligence
- Interface: CANopen DS-301 V4.01, Device Profile DS-406 V2.0
- Stroke range: 50 to 4000 mm
- Position resolution: up to 2 µm
- Speed resolution: up to 0.01 mm/sec
- Linearity error: 0.02%
- Repeatability error: 0.01 mm
- Compliant with EC directives: EN 50081-2, EN 50082-1
- Vibration resistant: DIN IEC68T2/6 12 g
- Protection: IP67
