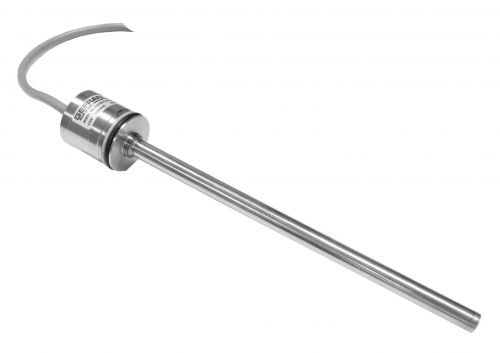

RK-2 Contactless magnetostrictive linear position transducer with flanged head
Description
Contactless linear position transducer using magnetostrictive technology. The absence of electrical contact on the cursor prevents wear and ensures nearly unlimited transducer life.
Its compact flanged head design makes the RK-2 series ideal for applications requiring full installation inside a hydraulic cylinder.
The sensor’s overall dimensions rank among the smallest on the market.
Interface options include a Start/Stop interface (supporting multiple cursors) or an analog interface providing single-cursor displacement in various voltage or current ranges.
The transducer delivers excellent linearity, repeatability, and strong resistance to mechanical vibrations and shocks.
Its compact flanged head design makes the RK-2 series ideal for applications requiring full installation inside a hydraulic cylinder.
The sensor’s overall dimensions rank among the smallest on the market.
Interface options include a Start/Stop interface (supporting multiple cursors) or an analog interface providing single-cursor displacement in various voltage or current ranges.
The transducer delivers excellent linearity, repeatability, and strong resistance to mechanical vibrations and shocks.
- Absolute transducer
- Strokes from 50 to 4000 mm (RK-2-_ _ _ _ -N/E/S)
- Digital output RS422 Start/Stop (RK-2-_ _ _ _ -S)
- Direct analog output (RK-2-_ _ _ _ -N/K/E)
- Operating temperature: -30...+90 °C
- Vibration resistant (DIN IEC68T2/6 20 g)
- Power supply: 18Vdc to 30Vdc
- Optional 12Vdc power supply (RK-2-_ _ _ _ -K)
- Digital version (RK-2-_ _ _ _ -S) allows remote connection (up to 50 m) to optional electronics for advanced analog (EKA) or CANopen (EKC) interfaces
