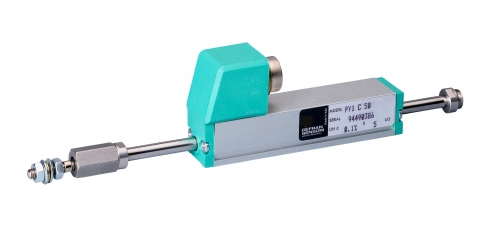

PY1 Rectilinear displacement transducer
Description
- Stroke range: 25 to 150 mm
- Mechanical linkage with play-compensating joint, M4 thread
- Independent linearity up to ±0.05%
- Infinite resolution
- Stable electrical output outside the theoretical electrical stroke
- Maximum displacement speed: 10 m/s
- Operating temperature: -30...+100 °C
- Electrical connections:
PY1 F: 3-wire screened cable, 1 m
PY1 C: 5-pole connector (DIN 43322) - Life expectancy: >100×106 operations (within C.E.U.)
- Dual support for control rod
- Protection rating: IP40
